125Khz RFID Card tseem hu ua ID Card. Clamshell 125Khz RFID Card yog daim npav ID nrog lub ntsej muag clamshell. Daim npav ID clamshell tau kos nrog 125Khz chips, xws li AT5577, EM4200, TK4100, Hi-tag2 thiab lwm yam. Daim npav sib thooj no yog siv los ntawm thiab sib txuas lus nrog RFID nyeem ntawv los ntawm RF induction technology. Nrog rau qhov loj me me rau daim npav rho nyiaj, tab sis lub thickness ntawm daim card clamshell yog 1.8 hli, yuav luag ob npaug ntawm cov tuab ntawm daim npav, yog li cov neeg feem coob hu ua daim npav tuab.

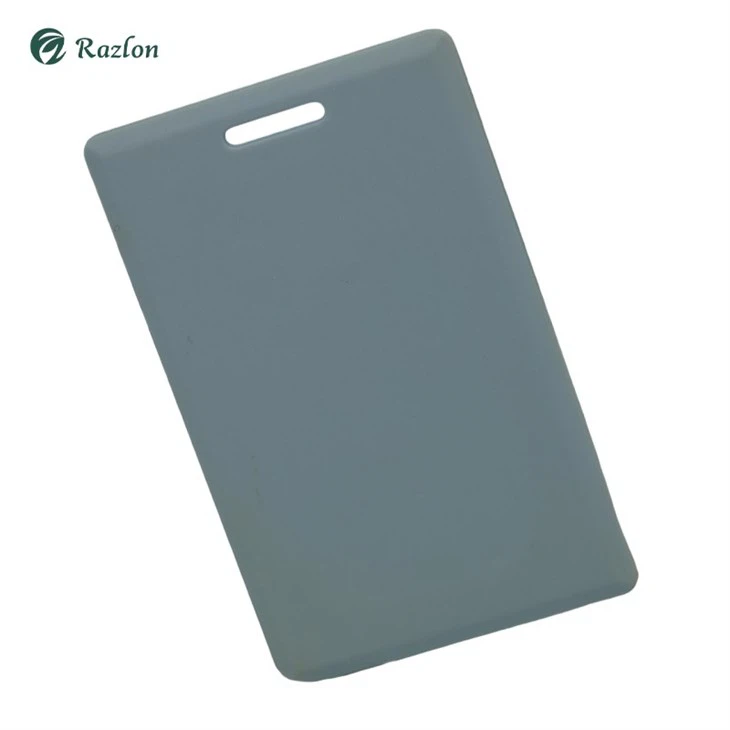

Koj tuaj yeem pom cov duab khoom hauv qab no. (P)
Daim npav clamshell 125Khz RFID yog ib hom kev tiv thaiv RFID daim npav, muaj lub microchip (IC) sab hauv, nrog ib puag ncig zoo li tooj liab kauj thiab kav hlau txais xov. Tom qab ntawd siv cov ntawv no, lub coil tooj liab, thiab kav hlau txais xov yuav tau txais cov ntaub ntawv thiab xa cov ntaub ntawv mus rau microchip, ces nti txheej txheem cov ntaub ntawv mus rau tus nyeem ntawv, qhov twg cov neeg ua haujlwm them tus nyeem ntawv yuav ua haujlwm. Daim npav ID tsuas muaj kev nyeem ntawv nkaus xwb thiab suav nrog 64-ntsis lo lus zais nrog kev rov sau dua tshiab, Lub sijhawm no, UID tau raug kho los ntawm cov chaw tsim khoom nti, uas lav tias qhov tshwj xeeb hauv ntiaj teb yuav tsis hloov mus ib txhis.
Vim tias daim npav clamshell 125Khz RFID tsis tswj los ntawm lub xov tooj cua zaus, nws tuaj yeem nyeem tau raws li kev sib cuag los ntawm dej, ntoo, thiab cov koom haum organic. Tsuas yog vim li no, daim npav 125Khz RFID yog qhov zoo heev rau cov ntawv thov no, xws li tsim nyog nyob ze, qis ceev, thiab qee qhov xwm txheej. Yog li 125Khz RFID phaib yog siv rau kev tswj xyuas, lub tsev so xauv, tsiaj daim ntawv lo, thiab cov khoom tswj kev tsim khoom, kev tuaj koom rooj sib tham, e-daim pib, kev tswj khaub ncaws, club noj, logistics, subway, industrial automation, thiab lwm yam.
Daim ntawv qhia yog qhia cov kab ntawv hauv qab no los ntawm kev tso ib qho kev txiav txim rau cov khoom xa tuaj.
Cov Khoom Paub meej
|
Khoom siv: |
ABS / PVC |
|
Loj: |
53.98 * 85.6MM / Kev cai |
|
Thickness: |
1.80MM IB |
|
Kev luam ntawv: |
Inkjet Printing, UV luam ntawv |
|
Chip: |
AT5577, EM4200, TK4100, Hi-tag2, EM4100 |
|
Nyeem nrug: |
5-40CM nyob ntawm tus nyeem ntawv |
|
Nto: |
Clamshell |
|
Lub sijhawm ua: |
Nquag 7-10 hnub tom qab pom zoo cov duab kos |
|
Pob: |
200/250 pcs ib lub thawv; 2500/3000pcs ib lub thawv |
Thiab muaj qhov ceev tshaj plaws thiab pheej yig tshaj logistic rau koj!
Txuag sijhawm! Txuag tus nqi! Zoo siab txais tos txhua tus uas xav ua lag luam daim npav !!
FAQ
Q: Vim li cas cov tsev so nyiam siv AT5577 125Khz RFID daim npav ua daim npav kaw tsev so?
A: Hotel 125Khz AT5577 daim npav dawb yog ib feem tseem ceeb ntawm lub tsev so kaw qhov system, yog tias hloov kho cov yuam sij, txhim kho kev ua haujlwm ntawm kev tswj hwm tsev so. Nyob rau hauv xyoo tas los no, cov tsev tos qhua tseem siv cov khoom siv lub qhov rooj xauv, yuav tsum muaj lub thawv loj loj ntawm lub rooj zaum pem hauv ntej. Yog hais tias tus qhua poob tus neeg kho tshuab yuam sij, lub tsev so yuav tsum hloov cov xauv, thiab cov yuam sij, uas muaj kev ua haujlwm tsis zoo thiab kev paub rau ob qho tib si ntawm tsev so thiab cov qhua. Tam sim no RFID lub tsev so locks daws qhov teeb meem loj no. Txhua daim npav yog qhov khoob, thiab tsis tuaj yeem qhib ib qho xauv, tom qab tau muab los ntawm tus encoder, daim npav programmed los ntawm cov ntsiab lus muaj nuj nqi, zoo li tus qhua chav tseem ceeb daim npav, thiab daim npav neeg ua haujlwm. Yuav tsis muaj teeb meem nrog kev ruaj ntseg lossis tus yuam sij poob.
Q: Puas yog 125Khz RFID Card yog qhov siab?
A: Tsis yog 125Khz RFID Card yog daim npav ntse tsawg zaus. Tab sis qhov siab zaus rau daim npav ntse yog 13.56Mhz.
Q: Daim npav EM yog dab tsi?
A: EM yog tus qauv RFID thev naus laus zis los siv los ntawm ntau lub tshuab Nordic nkag mus. EM4200 yog EM nti siv nrog 125Khz hnub no thiab tau tshaj EM4102. EM siv luv luv nyeem ntau txog 20CM nyob ntawm qhov chaw, nyeem ntawv, thiab kav hlau txais xov.
Q: Yuav ua li cas pom qhov txawv ntawm 125Khz thiab 13.56Khz los ntawm daim npav
A: Cov duab ntawm tooj liab kauj rau daim npav yog txawv. Peb tsuas yog pom lub teeb ci rau daim npav, thiab xyuas cov Cooper coil zoo li. Yog hais tias nws yog puag ncig, ces nws yuav tsum yog 125Khz. Yog hais tias tus tooj liab coil lub duab plaub, nws yuav tsum yog 13.56Mhz.
Q: Lub sij hawm ua ntej rau 20, 000pcs ntawm at5577 luam ntawv yog dab tsi?
A: Nws siv sijhawm 6-8 hnub. Yog tias koj ceev kom tau txais nws, peb tuaj yeem npaj qhov kev txiav txim ceev kom nrawm thiab ua tiav hauv 4 hnub.
